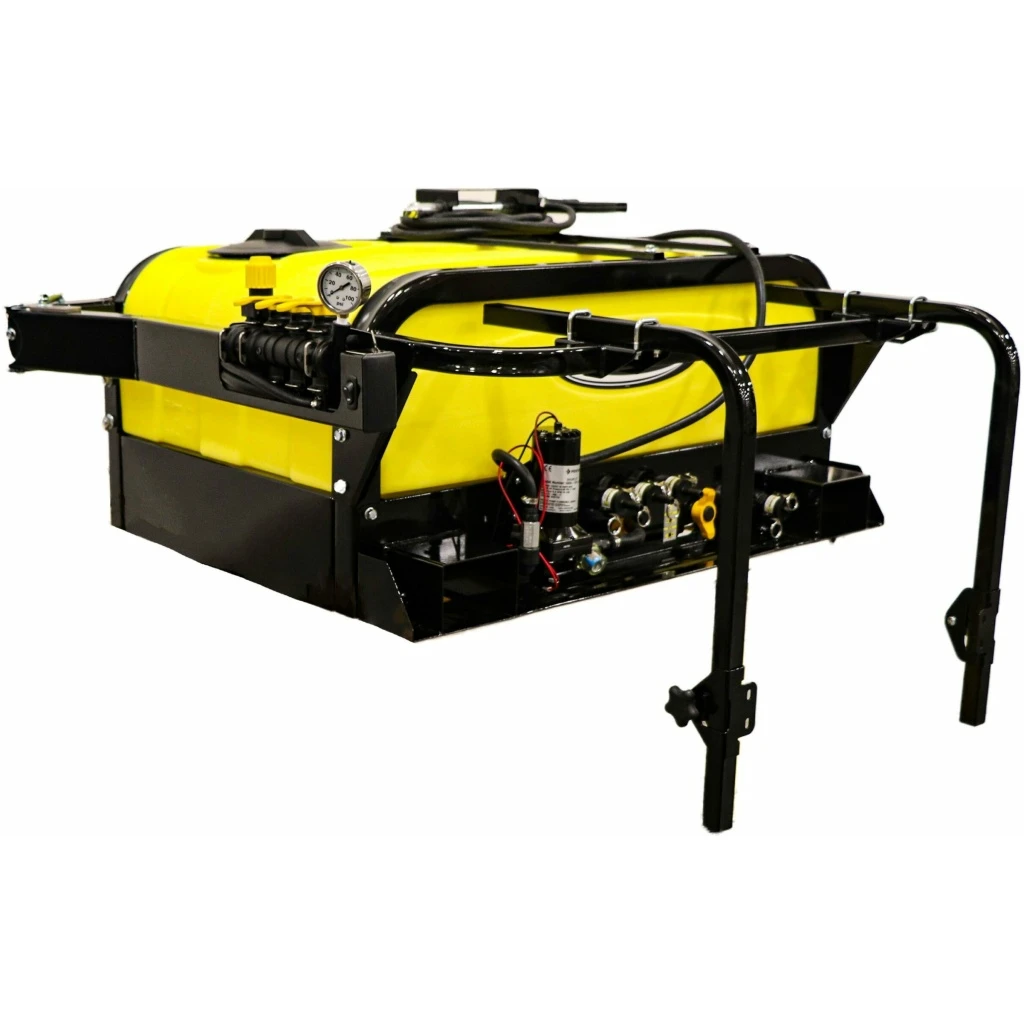

AG Spray Pro UTV Sprayer 65 Gallon Gas Electric W/ 3 Section-Boom

Product Description
The 5303225 PROUTV Series 12 Volt configuration from Ag Spray is a professional series 65 gallon sprayer designed for the bed of an UTV that is built to handle any job whether it’s utility, municipality, rangeland or ag. The 12 Volt version is designed to allow the tailgate to be closed on most models of UTV. The conveniently positioned swing control arm rotates next to UTV cab for easy sprayer control. The control arm has a spring loaded position detent to allow the operator to easily enter and exit the machine and stow the control arm when not in use. The steel base has fork lift pockets incorporated for convenient installation and removal. The poly tank is built with a molded-in tank baffle with sloped floor and a molded-in outlet fitting for easy and complete clean out. The Shurflo 12 Volt pump is rated up to 5.3 GPM with demand switch and up to 60 PSI. The pro series long range handgun with adjustable pattern tip distributes up to 38 feet of horizontal spray and up to 27 feet of vertical spray and comes with 25 feet of 3/8 inch hose. Hand wand spray pattern is controlled by how far the trigger is depressed which allows the operator to change between straight to wide fan pattern to meet your application needs. Combined with our 1 year warranty, AG SPRAY PROUTV Sprayers will deliver dependable use when you need it most.

The 5282450 Boom Extender BXT3438 is a very versatile boom with an 6 Feet traditional center section boom coverage and 14 Feet effective coverage Boom Extender Tip on each side that deliver up to 34 Feet of effective coverage in one pass. The Boom Extender Tip (BXT) mounts are designed with adjustable swivel brackets that can be rotated 180 degrees to allow the operator to direct the spray coverage to desired spray target area. A detent button on the BXT bracket acts as a locating stop at 5 degree above horizontal for optimized effective coverage, taking the guess work out of resetting the nozzles after targeted applications. At 40 psi the BXT3438 has an effective coverage of 34 Feet and requires 3.8 gpm of product flow. Utilize the entire boom for pasture, rangeland or spot spraying troubled areas or restrict the flow to left, center or right or any combination of sections for right-away, road sides or lane weed management.
