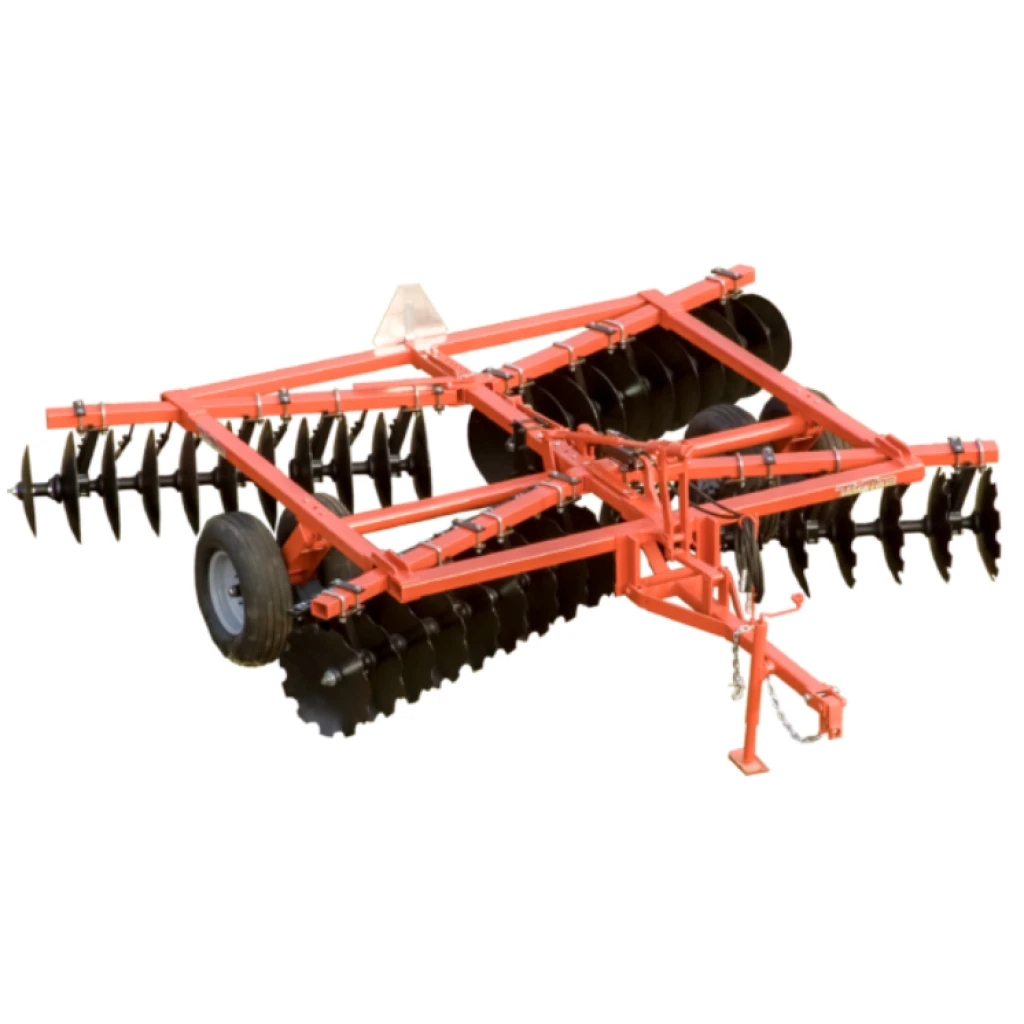

Tufline TW5 Series 12′ Tandem Wheel Disc Harrow #TW93222

TW5 Series Tandem Wheel Disc Harrows

8’ – 9’ 6” Models

Tufline’s TW5 Series Tandem Wheel Disc are designed for 35 to 65 horsepower tractors. The mainframe is constructed of heavy duty 3” square tube with tube type gang hangers. The gangs have a 1 1/8” square hi-strength axles with triple sealed ball bearings. All units have a front to rear leveling system and depth control. Safety chain and mounted tongue jack are standard. The units are available in 9” or 7 1/2” or combination blade spacing. 20” or 22” notched blades are standard with plain blades optional. Hydraulic cylinders, hoses, and tires are standard equipment.

10’ 6” – 15’ Models

Designed for 50 to 85 horsepower tractors, these wider models have 4” X 3” and 5” X 3” hi-yield tube frames with tube type gang hangers. The gangs have a 1 1/8” square hi-strength axles with triple sealed ball bearings. All units have a front to rear leveling system and depth control. Safety chain and mounted tongue jack are standard. The units are available in 9” or 7 1/2” or combination blade spacing. 20” or 22” notched blades are standard with plain blades optional. Hydraulic cylinders, hoses, and tires are standard equipment.

Optional Equipment:
• Heavy Duty Blade Scrapers
• Outrigger Assembly with 16” or 18” Plain Disc Blades
• Balk Breaker Assembly with Point
• Dual Wheel Kit for 10’6” to 13’4’ models
• SMV Sign and Bracket
• Regreasable Bearings
• Roller Basket
